SAE COMPLIANT FOG LIGHTS: The Morimoto 4Banger NCS SAE Wide Beam exceeds the standards established in the latest SAE F regulations for street-legal fog lights, creating a new industry benchmark for beam intensity. This top-of-the-line product guarantees powerful and bright illumination, plus custom-made, fog-light specific mounting brackets to fit your Toyota Tundra (07-13).
ENGINEERED SOLUTION: Thanks to the compact size of the Morimoto 4Banger, a powerful fog light upgrade is now available that fits perfectly and looks great on your Toyota Tundra (2007-2013). Other adapter kits for larger LED pods are bulky and cause a jarring aesthetic. This isn't the case with the 4Banger. Engineers worked diligently to develop the brackets, spending hundreds of hours in the garage and undergoing various rounds of design, prototyping, and trial fitting to deliver the best fog light brackets to Toyota owners.
FULLY ADJUSTABLE: These lights boast a strong output of illumination, yet have adjustable vertical brackets for up to +/- 6 degrees of accuracy, to ensure you're not dazzling drivers in the opposite lane. The wide beam of light is suitable for fog lights, so that you can enjoy the maximum amount of light on the road ahead.
AIR COOLED: By incorporating air intake and exhaust vents into the bracket, Morimoto 4Banger LED Fog Lights optimize lumen output and longevity through passive cooling that prevents heat-soak, a common issue in LED pod fog lights without ventilation.
ALL WEATHER: The 4Banger LED Fog Lights from Morimoto offer white-output for maximum visibility, and Yellow-output for the best performance in inclement weather. Spot and Combo models feature Phosphor-Converted Yellow LEDs for penetrating particles in the air without reduced output. Filtering white light through a yellow lens may result in a similar look, however, no performance advantage is gained.

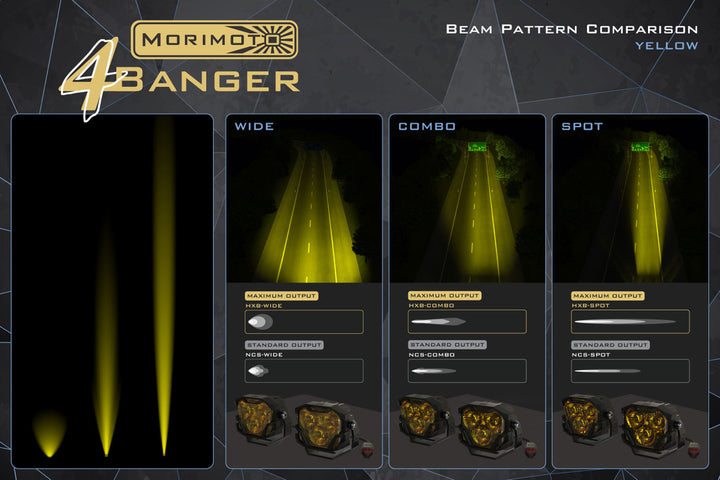

HXB WIDE BEAM: Providing a wide beam pattern boosted by powerful Osram HX Boost LEDs, the Morimoto 4Banger LED Fog Lights for Toyota Tundra (2007-2013) are the brightest SAE-Compliant fog light pods available (80% brighter than Rigid D-Series SAE Fog). With the 4Banger HXB Wide beam, you get the best balance of width, intensity, and control - making it the leading on and off-road LED fog light out there. Verified to be SAE Compliant by Calcoast ITL.
NCS WIDE BEAM: Featuring LEDs from Nichia, the 4Banger LED Fog Lights offer an impressive wide beam pattern. Further, the vertical gradient control has been verified by Calcoast ITL to meet SAE F photometric standards, meaning they can be safely used on roads. With the NCS Wide beam being 14% brighter than the closest competitor (Rigid D-Series SAE) while consuming 28% less power (15.6W vs 21.5W), these fog lights are highly effective and glare-free.
BENCHMARK: Morimoto is a globally-respected name in automotive lighting, renowned for offering performance-driven, high-quality, and fashionable upgrades for today's most popular vehicle models. Our expansive suite of products suits the needs of virtually any driver, while our original designs let you stand out from the crowd. If you desire something special, we'll create something one-of-a-kind, designed precisely with you in mind. Get connected and join the movement with Morimoto right now!
INCLUDED
FOG LIGHT BRACKETS:
2x (One Pair) Morimoto 4Banger (BAF019 / Type T2 Style)
LED PODS:
2x (One Pair) Morimoto 4Banger (Optional Color / Beam)
HARDWARE:
Complete Pack (Stainless Steel)
WIRING:
Plug N Play Connection Kit
WARRANTY:
Limited Lifetime
COMPATIBILITY
TOYOTA SEQUOIA:
2008-2017
TOYOTA SOLARA:
2004-2006
TOYOTA TACOMA:
2005-2011
TOYOTA TUNDRA:
2007-2013
REPLACES TOYOTA PART #:
81210-AA030
COMPLIANCE:
Wide beam photometrics are SAE F 20 compliant
TECH SPECS
INTENSITY:
NCS WIDE YELLOW:
8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
NCS WIDE WHITE:
14,400 Cd (Post Warm-Up) (144lux @ 10m)
NCS COMBO YELLOW:
38,850 Cd (Post Warm-Up) (384lux @ 10m)
NCS COMBO WHITE:
55,500 Cd (Post Warm-Up) (555lux @ 10m)
NCS SPOT YELLOW:
73,500 Cd (Post Warm-Up) (735lux @ 10m)
NCS SPOT WHITE:
105,000 Cd (Post Warm-Up) (1,005lux @ 10m)
HXB WIDE YELLOW:
14,700 Cd (@20 Min / 21C Ambient) (147lux @ 10m)
HXB WIDE WHITE:
22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)
HXB COMBO YELLOW:
54,600 Cd (@20 Min / 21C Ambient) (546lux @ 10m)
HXB COMBO WHITE:
78,000 Cd (@20 Min / 21C Ambient) (780lux @ 10m)
HXB SPOT YELLOW:
119,000 Cd (@20 Min / 21C Ambient) (1190lux @ 10m)
HXB SPOT WHITE:
170,000 Cd (@20 Min / 21C Ambient) (1,700lux @ 10m)
INPUT VOLTAGE:
9-18V DC
POWER:
15.6w (NCS) 42w (HXB)
CURRENT:
1.5A (NCS) or 3.2A (HXB)
DIMENSIONS:
82mm W, 67mm H, 60mm D
LIGHT SOURCE:
3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
INPUT:
Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
MATERIAL:
Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
IP RATING:
IP69K (Dust / High Pressure Water Resistant)
PODS (MODEL/BEAM/COLOR) |
Morimoto 4Banger NCS LED Pods (SAE Wide / White)(Set), Morimoto 4Banger NCS LED Pods (SAE Wide / Yellow)(Set), Morimoto 4Banger HXB LED Pods (SAE Wide / White)(Set) +$200, Morimoto 4Banger HXB LED Pods (SAE Wide / Yellow)(Set) +$200 |
---|
